The NEOX NS9736-64D is a spine switch for high-performance data centers and HPC/AI clusters. The switch provides line-rate L2 switching and L3 routing across the 64 x QSFP56-DD ports, each supporting supporting 1 x 400G or 1x200G or 1 x 100G, or via breakout cables and or appropriate transceivers 2 x 200G or 4 x 100G or 8 x 50G or 4 x 25G. The NS9736-64D can be deployed as a spine switch or and HPC/AI leaf supporting 100/400 GbE interconnects. The switch is using ONIE as a bootloader and can be shipped with one of the Network Operating System (NOS) at your choice: VelOS or Broadcom SONIC.

■ QSFP56-DD switch ports, supporting 1 x 400G or 1x200G or 1 x 100G, or via breakout cables and or appropriate transceivers 2 x 200G or 4 x 100G or 8 x 50G or 4 x 25G.
■ Incorporates Broadcom Tomahawk 4 switch series silicon.
■ 2 RU form factor.
■ Supports hot/cold aisles with front-to-back airflow SKU.

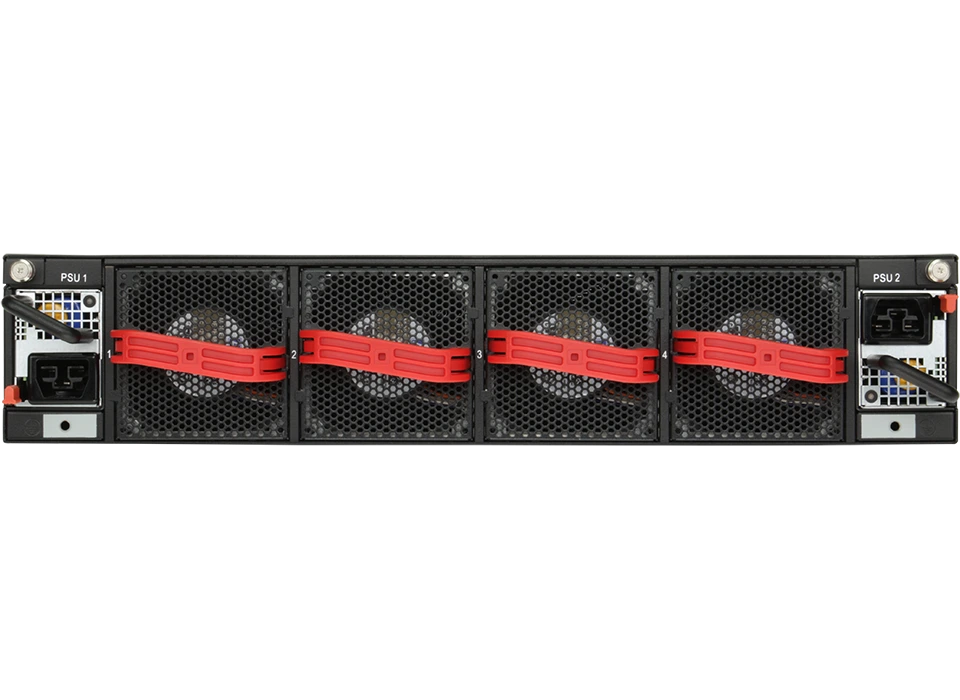

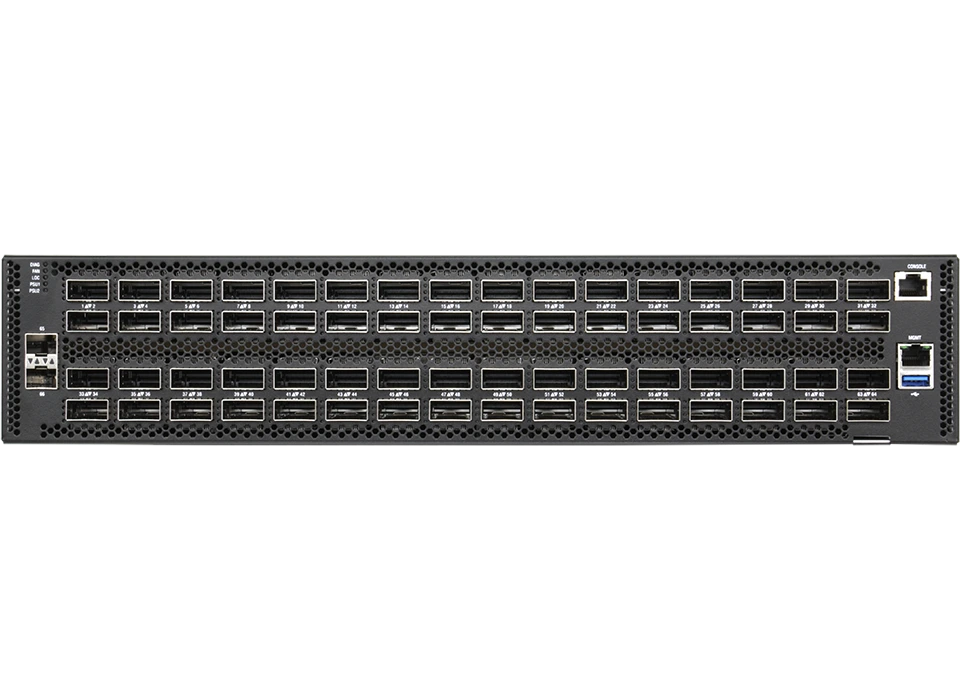

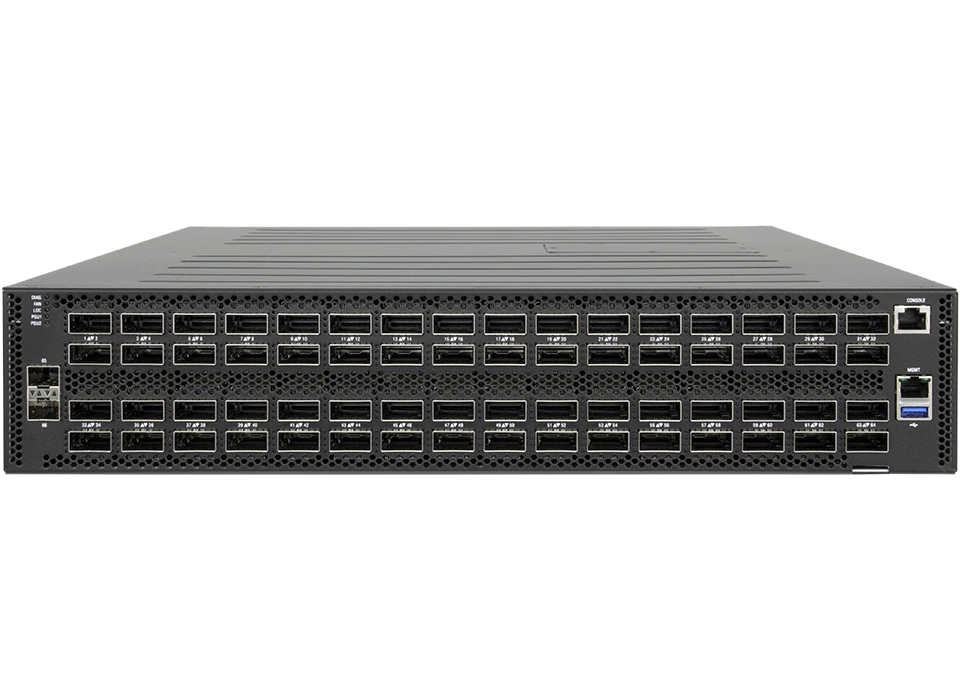

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant W AC/DC PSUs.
■ 3+1 redundant, hot-swappable fan modules.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings.
■ ONIE bootloader with the following NOS options: VelOS or Broadcom SONIC.
