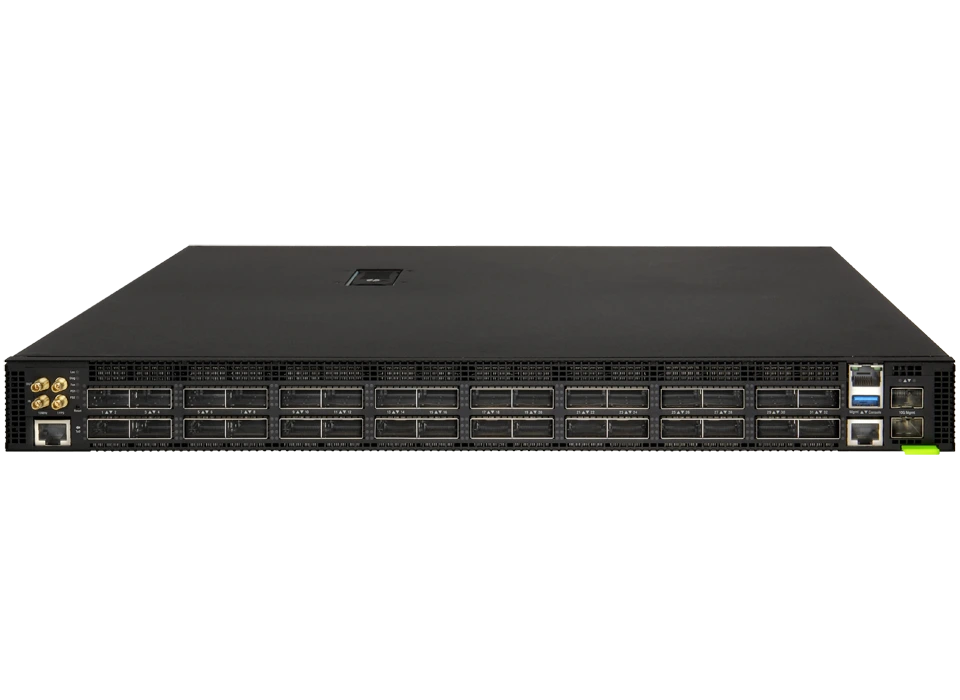

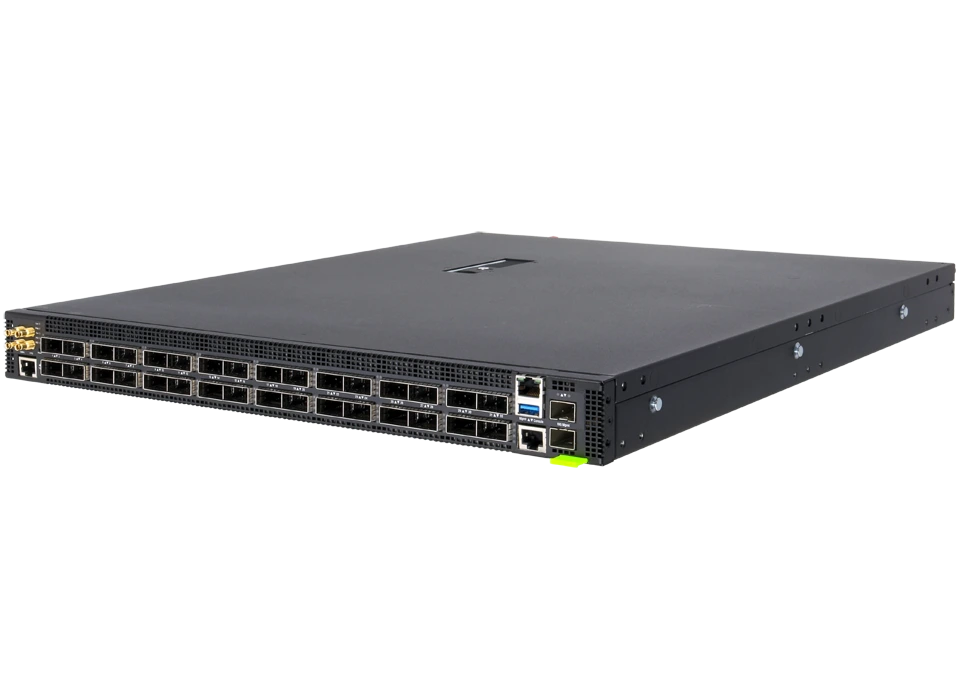

The NEOX NS9716-32D is a spine switch for for modern data centers or Top-of-Rack (TOR) switch for high-performance data centers and HPC/AI clusters. The switch provides line-rate L2 switching and L3 routing across the 32 x QSFP-DD ports, each supporting 1 x 400G or 1x200G or 1 x 100G, or via breakout cables and or appropriate transceivers 2 x 200G or 4 x 100G or 8 x 50G or 4 x 25G. The NS9716-32D can be deployed as a spine or an HPC/AI leaf supporting 100/400 GbE spine interconnects. The switch is using ONIE as a bootloader and can be shipped with one of the Network Operating System (NOS) at your choice: VelOS or Broadcom SONIC.

■ 32 x QSFP-DD switch ports, each supporting 1 x 400G or 1x200G or 1 x 100G, or via breakout cables and or appropriate transceivers 2 x 200G or 4 x 100G or 8 x 50G or 4 x 25G.
■ Incorporates Broadcom Tomahawk 3 switch series silicon.
■ 1 RU form factor.
■ Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

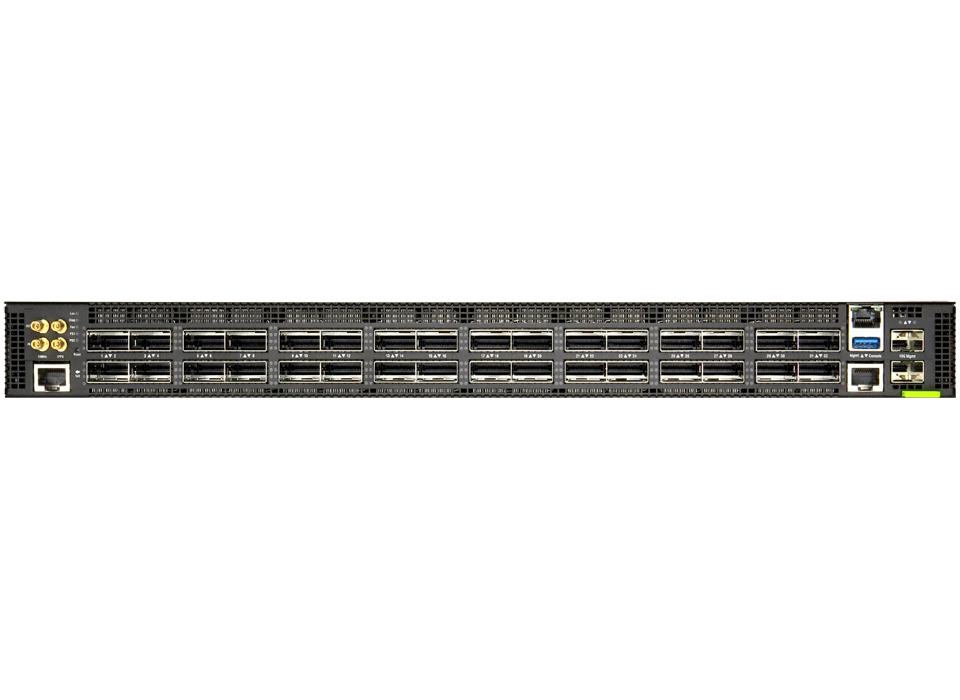

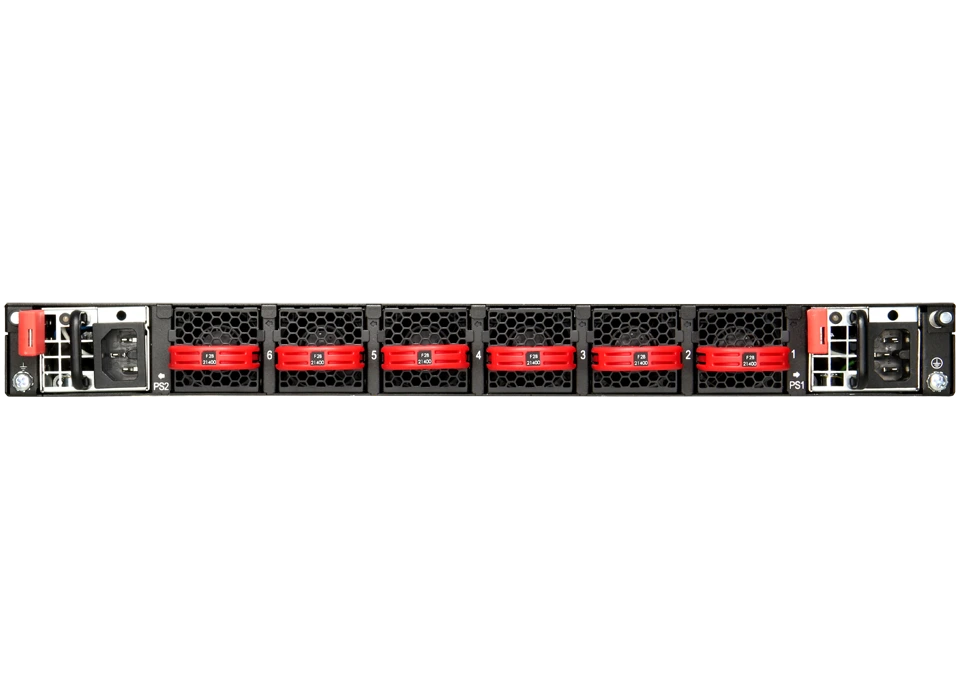

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ ONIE bootloader with the following NOS options: VelOS or Broadcom SONIC.
