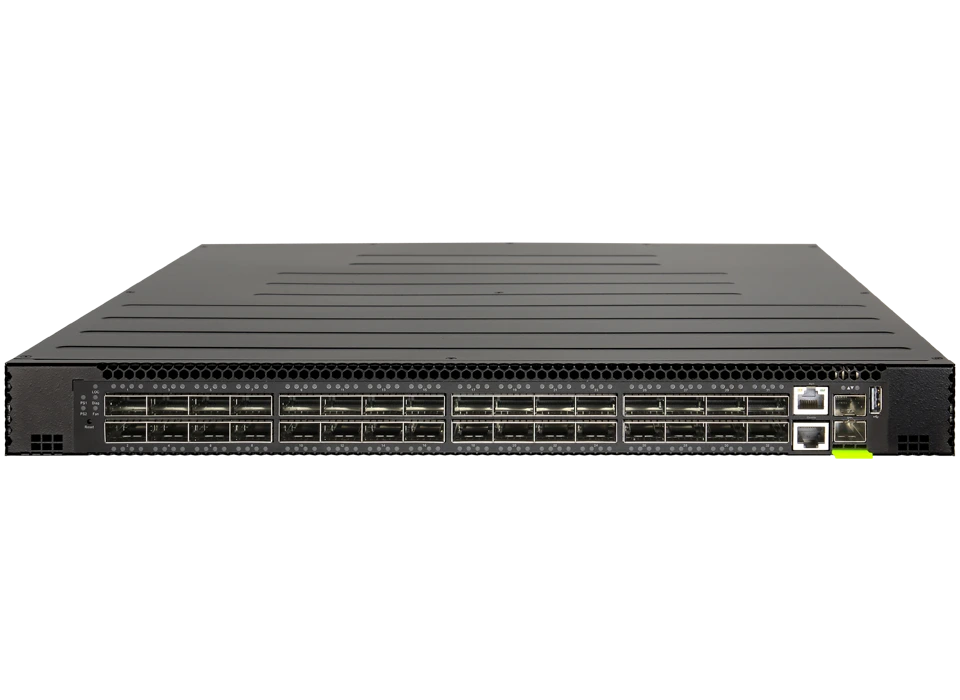

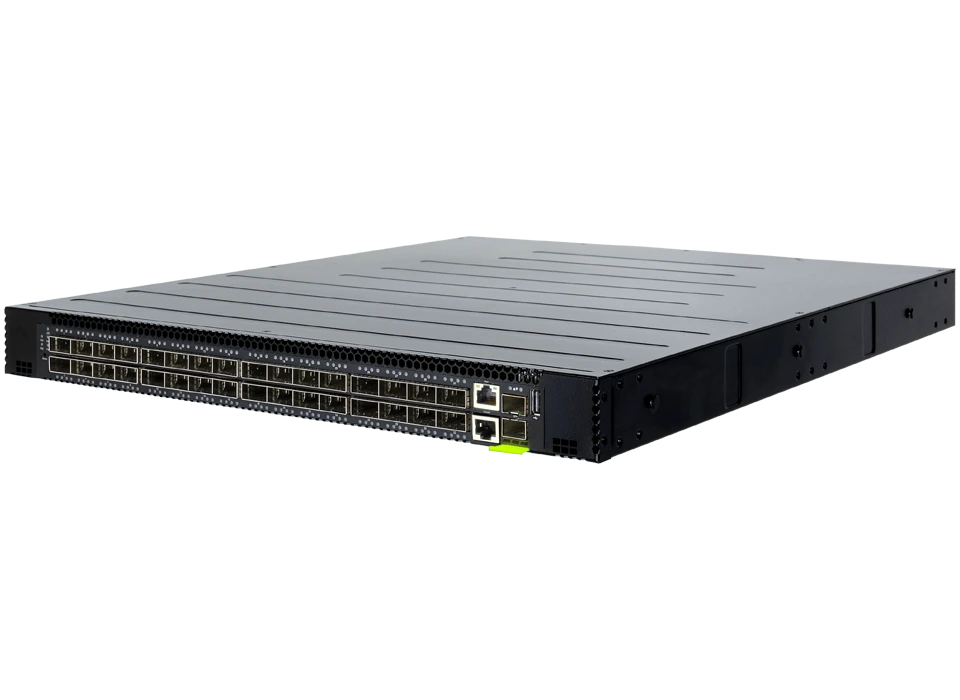

The NEOX NS7726-32X switch is a Top-of-Rack (TOR) or spine switch for modern data centers and enterprise networks. In a compact 1RU form factor, the switch provides line-rate L2 switching and L3 routing across the 32 x QSFP28 ports, where QSFP28 port can be configured as 2x50G, 4x25G, 1x40G or 4x10G by using breakout cables or appropriate transceivers. The NS7726-32X can be deployed as a TOR switch supporting 10/25/50G to servers with 40/50/100G uplinks or as a spine switch supporting 40/50/100G spine interconnects. The switch is using ONIE as a bootloader and can be shipped with one of the Network Operating System (NOS) at your choice: VelOS or Broadcom SONIC.

■ Deploy as top-of-rack switch supporting 10G or 25G to servers with 40G, 50 G or 100 G uplinks.
■ Deploy as spine switch supporting 40G, 50G or 100G ToR and spine interconnects.
■ 32 x QSFP28 switch ports, each supporting 1 x 100G or 1 x 40G or via breakout cables and appropriate transceivers 2 x 50G or 4 x 25G or 4 x 10G.
■ Layer 2 or Layer 3 forwarding of 3.2 Tbps.
■ Incorporates Broadcom Trident3 switch series silicon.
■ Supports hot/cold aisle with front-to-back and back-to-front airflow SKUs.

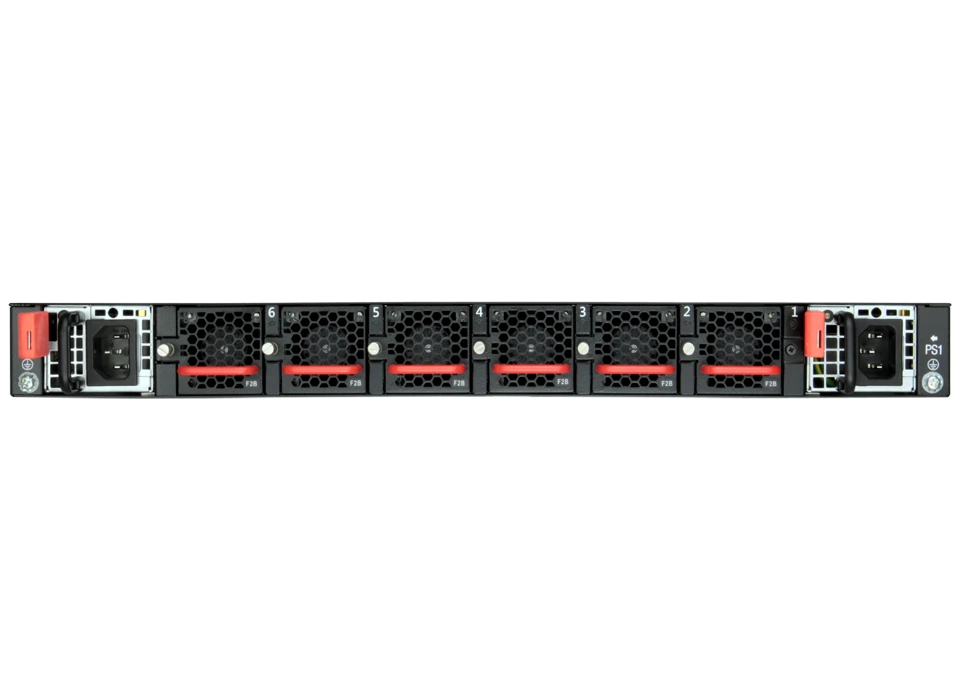

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Energy efficient.
■ ONIE bootloader with the following NOS options: VelOS or Broadcom SONIC.
