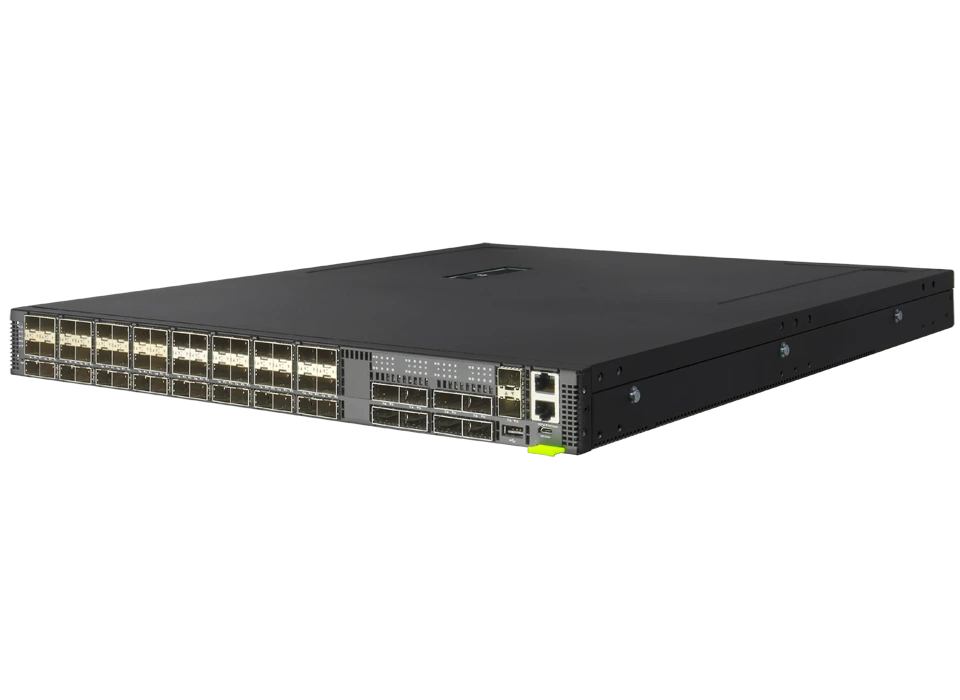

The NEOX NS7326 switch is a Top-of-Rack (TOR) switch for modern data centers and enterprise networks. In a compact 1RU form factor, the switch provides line-rate L2 switching and L3 routing across the 48 x SFP28 + 8 x QSFP28 ports, where QSFP28 port can be configured as 2x50G, 4 x 25G, 1 x 40G, or 4 x 10G by using breakout cables or appropriate transceivers. The NS7326 can be deployed as a TOR switch supporting 10/25G to servers with 40/100G uplinks. The switch is using ONIE as a bootloader and can be shipped with one of the Network Operating System (NOS) at your choice: VelOS or Broadcom SONIC.

■ Deploy as TOR switch supporting 10G or 25G to servers with 40G or 100G uplinks.
■ 48 x SFP28 + 8 x QSFP28 switch ports, where QSFP28 supporting 1 x 100G or 1 x 40G or via breakout cables and appropriate transceivers 4 x 25G or 4 x 10G.
■ Layer 2 or Layer 3 forwarding of 2 Tbps.
■ Incorporates Broadcom Trident3 switch series silicon.
■ Supports hot/cold aisles with front-to-back or back-to-front airflow SKUs.

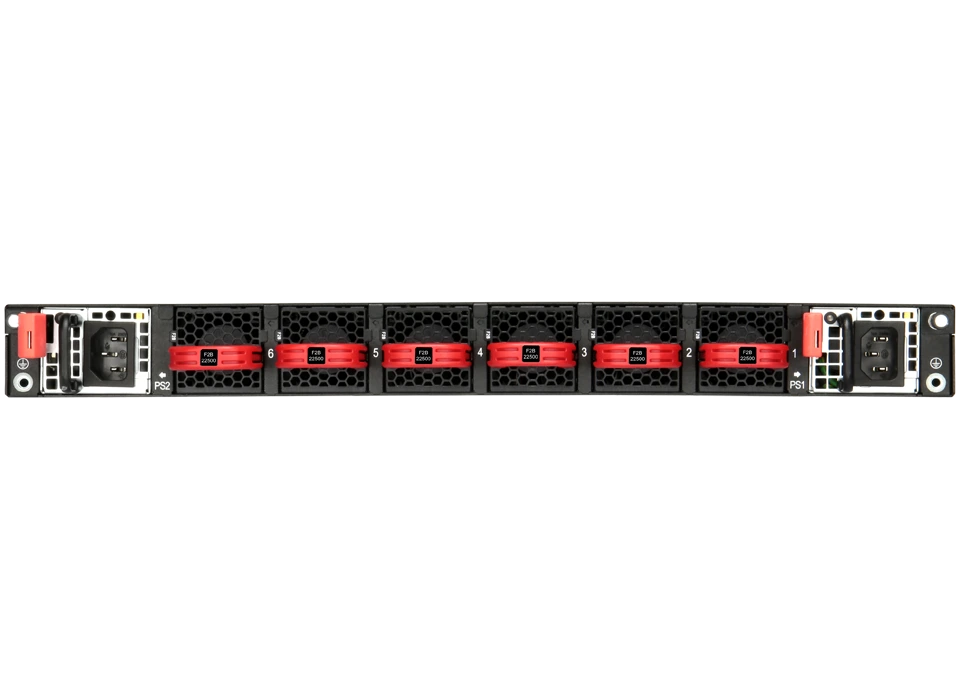

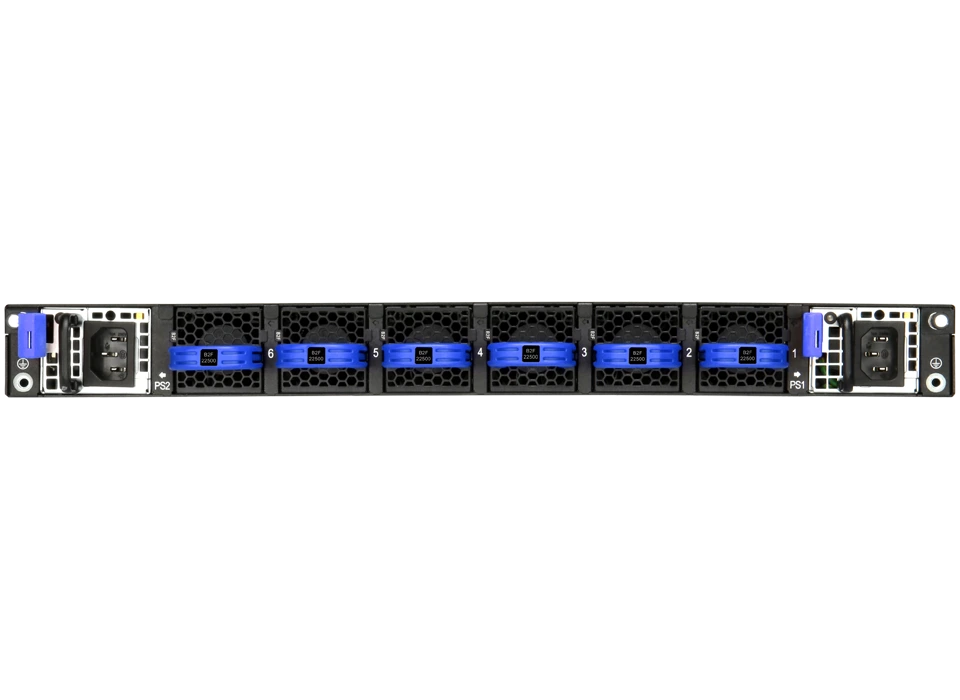

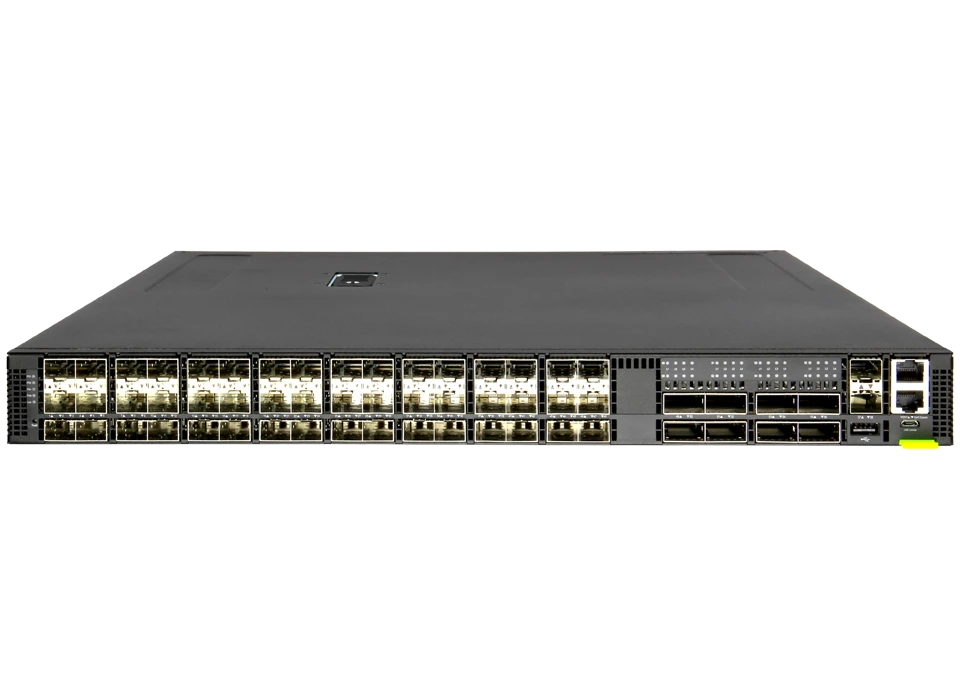

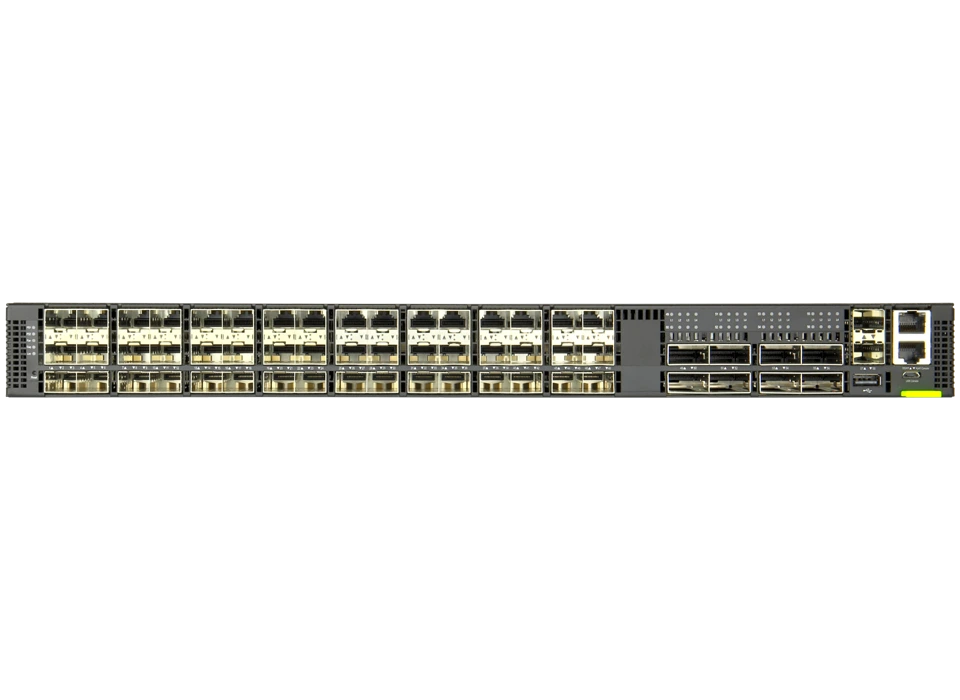

■ All ports on front, PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Energy efficient.
■ ONIE bootloader with the following NOS options: VelOS or Broadcom SONIC.
